FILTERWEARS Pre-Filter A105 For aFe POWER Air Filters | Replaces aFe 28-10083
FILTERWEARS Pre-Filter A105 For aFe POWER Air Filters | Replaces aFe 28-10083

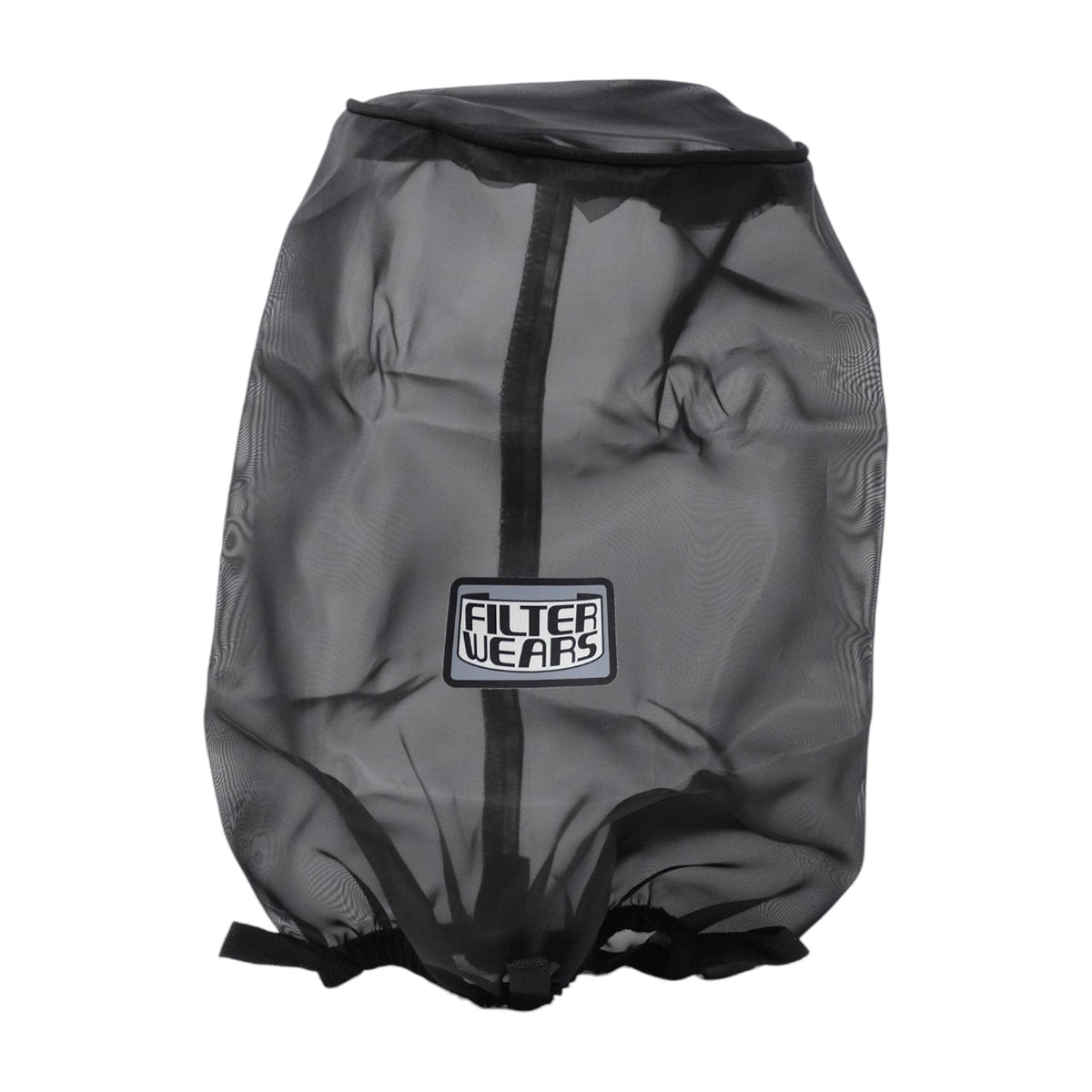

What you are buying: A FILTERWEARS pre-filter cover for the air-filter part numbers or intake dimensions listed below. The primary air filter and intake components are not included. Match your installed filter part number and dimensions before ordering.
Direct from manufacturer. Made in the USA.
Filter material: 100% monofilament polyester with water repellent finish standard on all pre-filters. Closed top, round tapered pre-filter.
Measurements: 4.75"(top diameter), 6"(base diameter), 7"(height)
Fits aFe Air Filters: 21-28003, 24-28003, 21-30009, 21-30018, 24-30018, 72-30018, 21-35010, 24-35010, 21-35011, 24-35011, 21-35508, 24-35508, 72-35508, 21-40006, 24-40006, 21-40011, 24-40011, 72-40011, 21-40507, 24-40507, 21-45507, 24-45507, 21-90081, 24-90081, 21-90095, 24-90095, 21-90096, 24-90096, 21-91020, 24-91020, 72-91020, 21-91020-MA, 21-91073, 24-91073, 21-91090, 24-91090, 21-91097, 24-91097, 21-91103, 24-91103, 24-91103K, 21-91151, 24-91151, TF-9014D, TF-9024R, TF-9024D, TF-9027R, TF-9027D, TF-9028R, TF-9028D, 21-30009V, 21-30018V, 21-35010V, 21-35011V, 21-35508V, 21-40006V, 21-40011V, 21-40507V, 21-45507V, 21-90081V, 21-90095V, 21-91020V, 21-91090V
Cross Reference: aFe Magnum SHIELD Pre-Filter 28-10083
Fitment Table:
This pre-filter fits the following aFe POWER air filters and corresponding cold air intake systems. Use the table below to verify compatibility by part number, dimensions, or intake system.
| Air Filter Part Number | Air Filter Top Dimensions | Air Filter Base Dimensions | Air Filter Height | aFe Intake Part Number |
|---|---|---|---|---|
| 21-28003 | 5.25" diameter | 6" diameter | 7" | N/A |
| 24-28003 | 5.25" diameter | 6" diameter | 7" | N/A |
| 21-30009 | 4.75" diameter | 5" diameter | 7" | 85-10024 |
| 21-30018 | 4.75" diameter | 6" diameter | 7" | 51-10152, 51-11552-1 |
| 24-30018 | 4.75" diameter | 6" diameter | 7" | 54-10142, 54-11052, 54-11552-1 |
| 72-30018 | 4.75" diameter | 6" diameter | 7" | N/A |
| 21-35010 | 4.75" diameter | 6" diameter | 6" | N/A |
| 24-35010 | 4.75" diameter | 6" diameter | 6" | 54-10751 |
| 21-35011 | 4.75" diameter | 6" diameter | 7" | N/A |
| 24-35011 | 4.75" diameter | 6" diameter | 7" | 54-12562 |
| 21-35508 | 3.5" diameter | 5" diameter | 8" | N/A |
| 24-35508 | 3.5" diameter | 5" diameter | 8" | N/A |
| 72-35508 | 3.5" diameter | 5" diameter | 8" | N/A |
| 21-40006 | 4" diameter | 6" diameter | 6" | N/A |
| 24-40006 | 4" diameter | 6" diameter | 6" | N/A |
| 21-40011 | 4.75" diameter | 6" diameter | 7" | 51-10922 |
| 24-40011 | 4.75" diameter | 6" diameter | 7" | 54-12602 |
| 72-40011 | 4.75" diameter | 6" diameter | 7" | 85-10036 |
| 21-40507 | 4" diameter | 6" diameter | 7" | 51-11112 |
| 24-40507 | 4" diameter | 6" diameter | 7" | 54-11112 |
| 21-45507 | 4.75" diameter | 6" diameter | 7" | 51-12462, F2-03013 |
| 24-45507 | 4.75" diameter | 6" diameter | 7" | 54-11772, 54-12462, 54-12622 |
| 21-90081 | 4.75" diameter | 5" diameter | 7" | N/A |
| 24-90081 | 4.75" diameter | 5" diameter | 7" | 54-12492 |
| 21-90095 | 4.75" diameter | 6" diameter | 7" | 54-13025D |
| 24-90095 | 4.75" diameter | 6" diameter | 7" | 54-12842, 54-13025R |
| 21-90096 | (2.75"x6") oval | (5"x5.75") oval | 6.5" | 51-12912-B, 51-12912-C, 51-12922-B, 51-12922-C |
| 24-90096 | (2.75"x6") oval | (5"x5.75") oval | 6.5" | 54-12912-B, 54-12912-C, 54-12922-B, 54-12922-C |
| 21-91020 | 4.5" diameter | 6" diameter | 6" | 54-13055D, 54-83038D, 57-10013D, 58-10007D |
| 24-91020 | 4.5" diameter | 6" diameter | 6" | 54-13055R, 54-83038R, 57-10013R, 58-10007R |
| 72-91020 | 4.5" diameter | 6" diameter | 6" | N/A |
| 21-91020-MA | 4.5" diameter | 6" diameter | 6" | 54-13055D, 54-83038D, 57-10013D, 58-10007D |
| 21-91073 | 4.5" diameter | 6" diameter | 6.5" | 51-76301, 51-76315 |
| 24-91073 | 4.5" diameter | 6" diameter | 6.5" | 54-76301, 54-76315 |
| 21-91090 | 4.5" diameter | 6" diameter | 6" | N/A |
| 24-91090 | 4.5" diameter | 6" diameter | 6" | TR-5201B-R, TR-5307B-R |
| 21-91097 | 4.5" diameter | 5" diameter | 6.5" | 50-70068D, 50-70083D, 50-70097D, 51-76305, 51-76305-CF, 56-70001D |
| 24-91097 | 4.5" diameter | 5" diameter | 6.5" | 50-70068R, 50-70083R, 50-70097R, 54-76305, 54-76305-CF, 56-70001R |
| 21-91103 | 4.5" diameter | 5" diameter | 7.5" | 50-70036D, 50-70087D, 50-70088D, 50-70104D, 51-76309, 51-76312, 51-76403, 51-76901, 56-70002D, 56-70003D, 56-70006D, 56-70010D, 56-70014D, 56-70016D, 56-70023D, 56-70025D, 56-70031D, 56-70034D, 56-70044D, 56-70045D, 56-70052D, 56-70053D, 56-70056D, 56-70062D, 56-70062DR, 56-70065D, 56-70065DN, 56-70069D, 58-10002D, TM-1024B-D, TM-1025B-D, TM-1026B-D, TM-2018B-D, TM-2019B-D |
| 24-91103 | 4.5" diameter | 5" diameter | 7.5" | 50-70036R, 50-70087R, 50-70088R, 50-70104R, 54-76309, 54-76312, 54-76403, 54-76901, 56-70002R, 56-70003R, 56-70006R, 56-70010R, 56-70014R, 56-70016R, 56-70023R, 56-70025R, 56-70031R, 56-70034R, 56-70044R, 56-70045R, 56-70052R, 56-70053R, 56-70056R, 56-70062R, 56-70065R, 56-70069R, 58-10002R, TM-1024B-R, TM-1025B-R, TM-1026B-R, TM-2018B-R, TM-2019B-R |
| 24-91103K | 4.5" diameter | 5" diameter | 7.5" | 56-70056KN |
| 21-91151 | 4.5" diameter | 4.5" diameter | 7" | 50-70046D, 50-70046DN |
| 24-91151 | 4.5" diameter | 4.5" diameter | 7" | 50-70046R |
| TF-9014D | 4.75" diameter | 6" diameter | 7" | TA-4301P |
| TF-9024R | 4.5" diameter | 6" diameter | 7" | TA-4306B-R |
| TF-9024D | 4.5" diameter | 6" diameter | 7" | TA-4306B-D |
| TF-9027R | 4.5" diameter | 5" diameter | 6.75" | TR-2017L-R |
| TF-9027D | 4.5" diameter | 5" diameter | 6.75" | TR-2017L-D |
| TF-9028R | 4.5" diameter | (5"x5.75") oval | 7" | 56-10007R, 56-10008R, 56-10009R, 56-10018R, 56-10020R, 56-10027R, TR-3021B-R |
| TF-9028D | 4.5" diameter | (5"x5.75") oval | 7" | 56-10007D, 56-10008D, 56-10009D, 56-10018D, 56-10020D, 56-10027D, TR-3021B-D |
| 21-30009V | 4.75" diameter | 5" diameter | 7" | N/A |
| 21-30018V | 4.75" diameter | 6" diameter | 7" | N/A |
| 21-35010V | 4.75" diameter | 6" diameter | 6" | N/A |
| 21-35011V | 4.75" diameter | 6" diameter | 7" | N/A |
| 21-35508V | 3.5" diameter | 5" diameter | 8" | N/A |
| 21-40006V | 4" diameter | 6" diameter | 6" | N/A |
| 21-40011V | 4.75" diameter | 6" diameter | 7" | N/A |
| 21-40507V | 4" diameter | 6" diameter | 7" | N/A |
| 21-45507V | 4.75" diameter | 6" diameter | 7" | N/A |
| 21-90081V | 4.75" diameter | 5" diameter | 7" | N/A |
| 21-90095V | 4.75" diameter | 6" diameter | 7" | N/A |
| 21-91020V | 4.5" diameter | 6" diameter | 6" | N/A |
| 21-91090V | 4.5" diameter | 6" diameter | 6" | N/A |
A little checking. A better fit.
Compare the number on your current filter with the compatibility details above.
Confirm dimensions, connections and equipment model. A similar appearance does not confirm fit.
Check the selected size, pack quantity and included items before adding to your cart.
